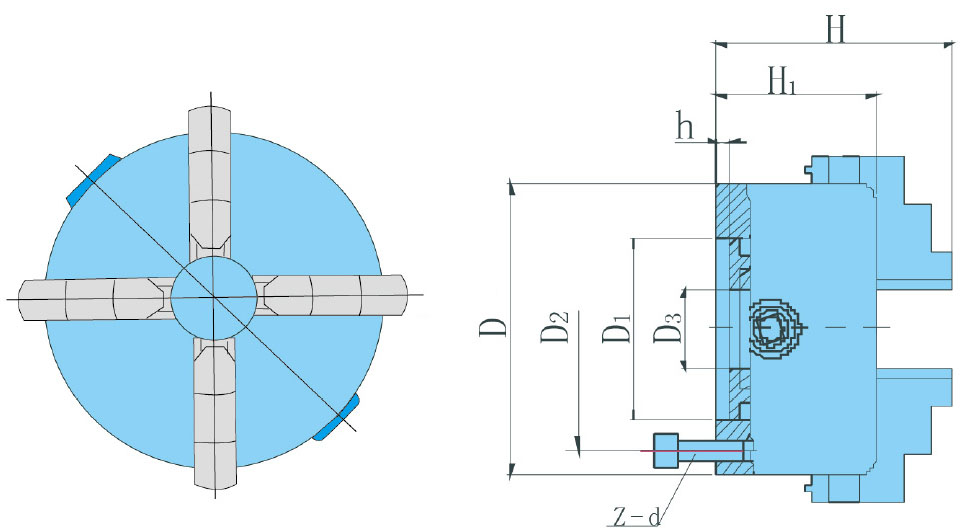

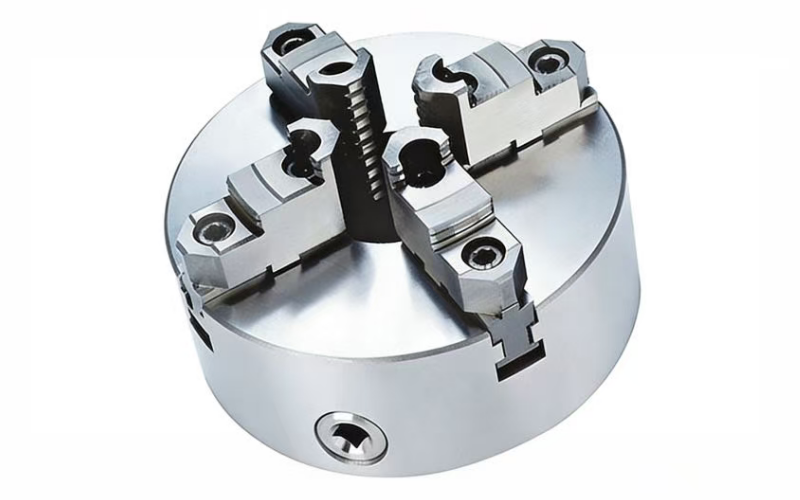

K12 Four-jaw self-centring Separation chucks

1.Short cylindrical center mounting.

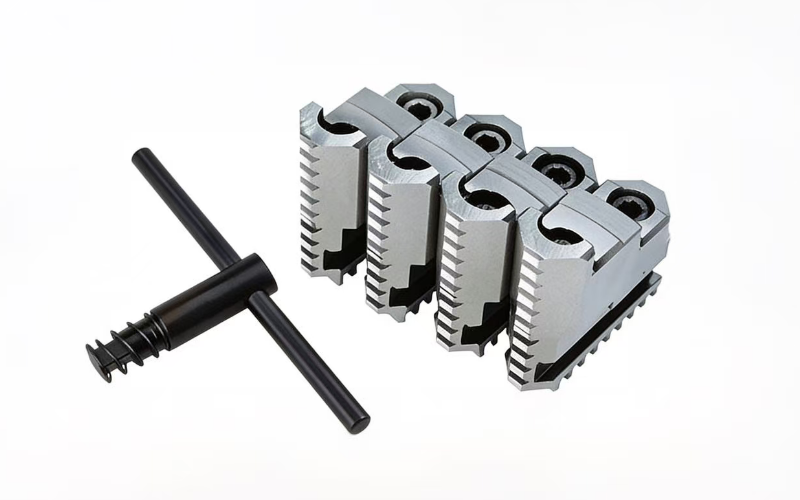

2.Model K12 chucks are provided with one-piecejaws(which include a set of internal jaws and a set ofexternal ones).

3.The jaws for K12A,K12C and K12D chucks are composedof two-piece jaws.They can perfrom as either internaljaws through adjustment.

4.The jaws for K12A andK12D chucks conform to lSO3442standard.

5.Model K12C chucks are supplied with traditional two-piecejaws.

6.We can provide all kinds of soft jaws.

7.As requested,we can provide chucks mounted from front.

K12 Four-jaw self-centring Separation chucks

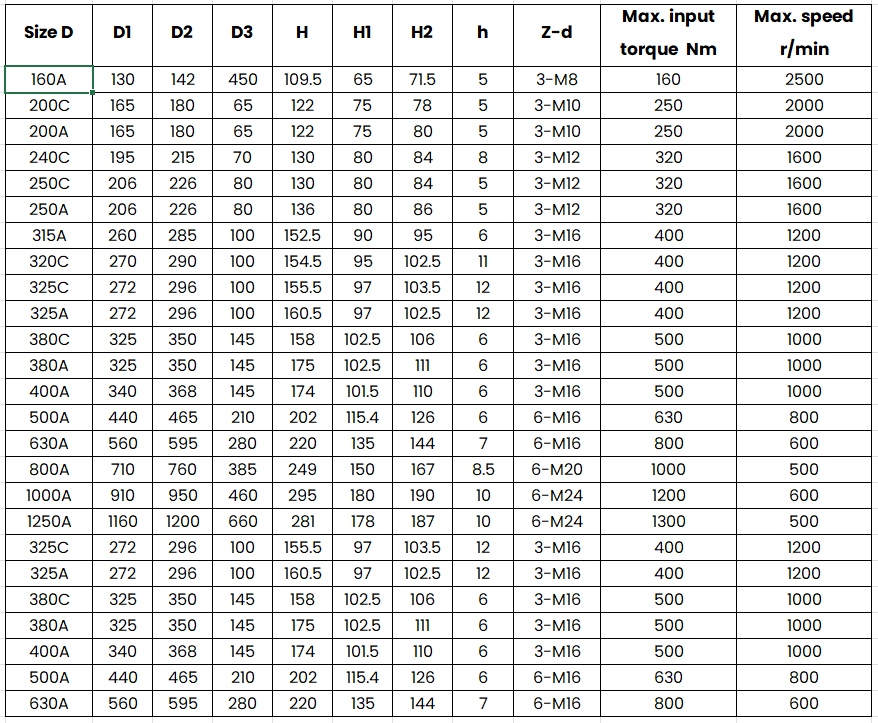

Parameter Table

K12 Four-jaw self-centring Separation chucks
