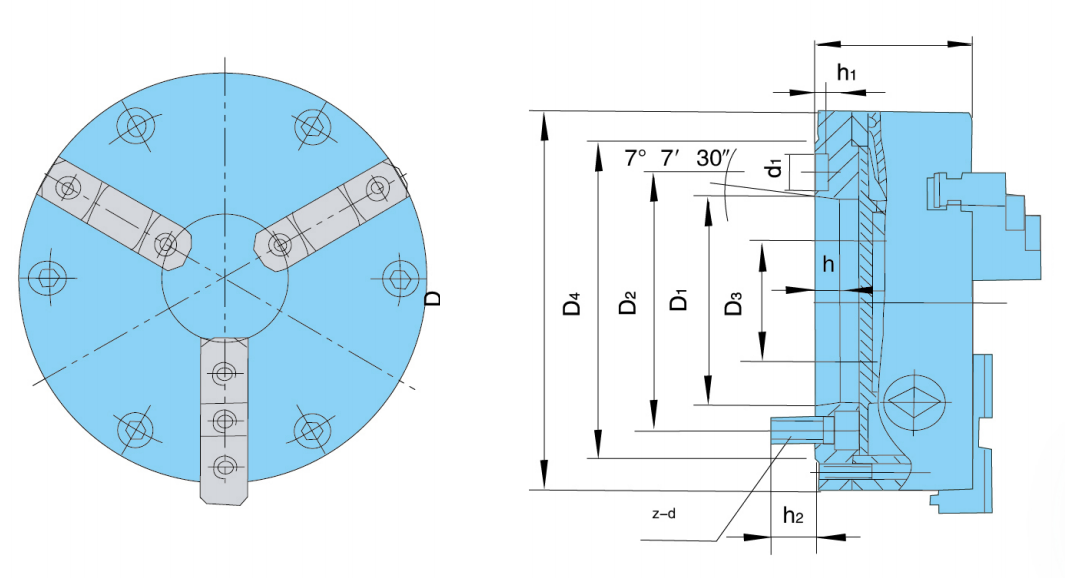

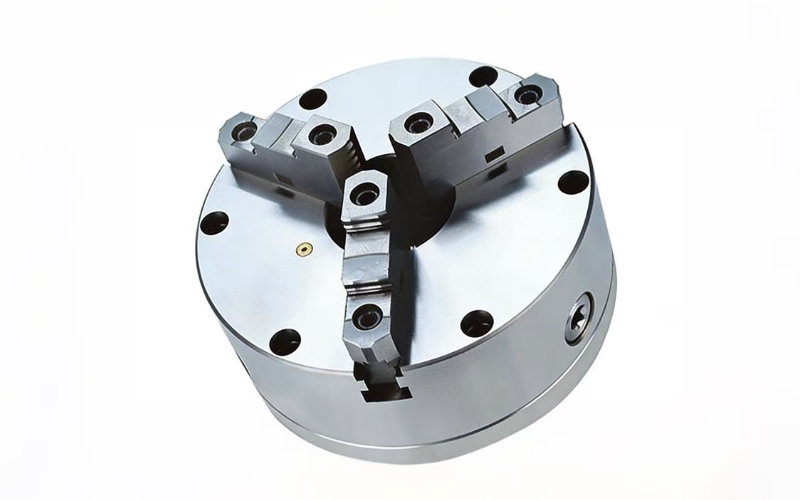

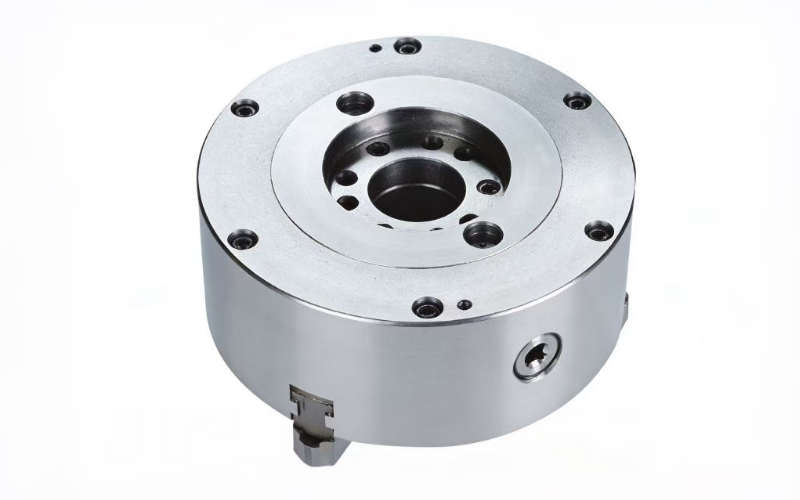

K11 Short-taper three-jaw self-centring chucks
Features :
Mounted with the machine spindle nose as follows:
1.At first,the adapter plate for form A2 can be miuntedwith the machine spindle nose.
2.Secondly,the chuck can be mounted with the adapter plate from front.The structure of the jaws includes one-piece ones and two-piece one for form A,C.

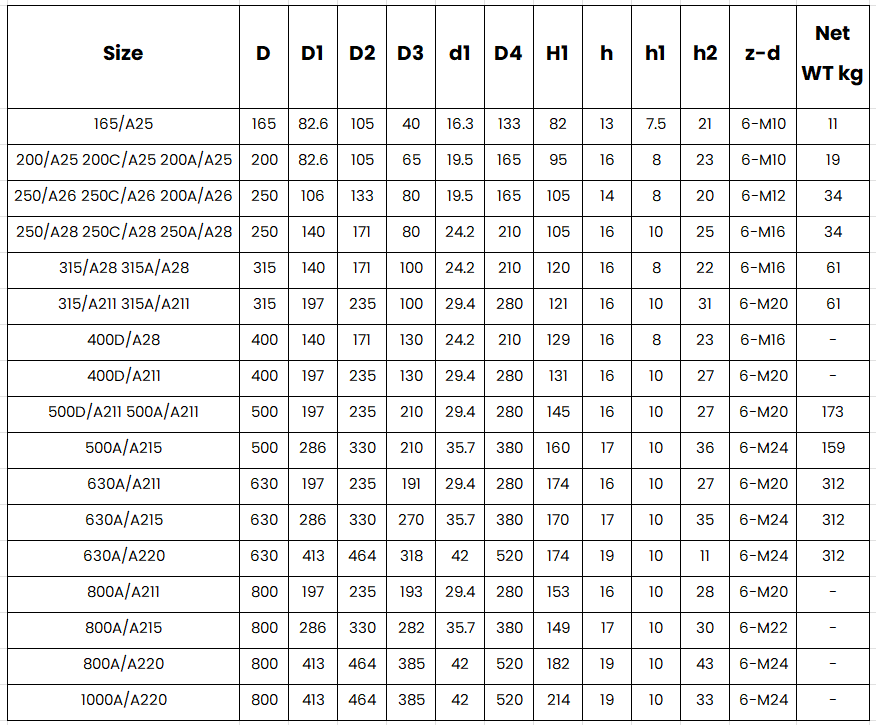

Parameter Table
